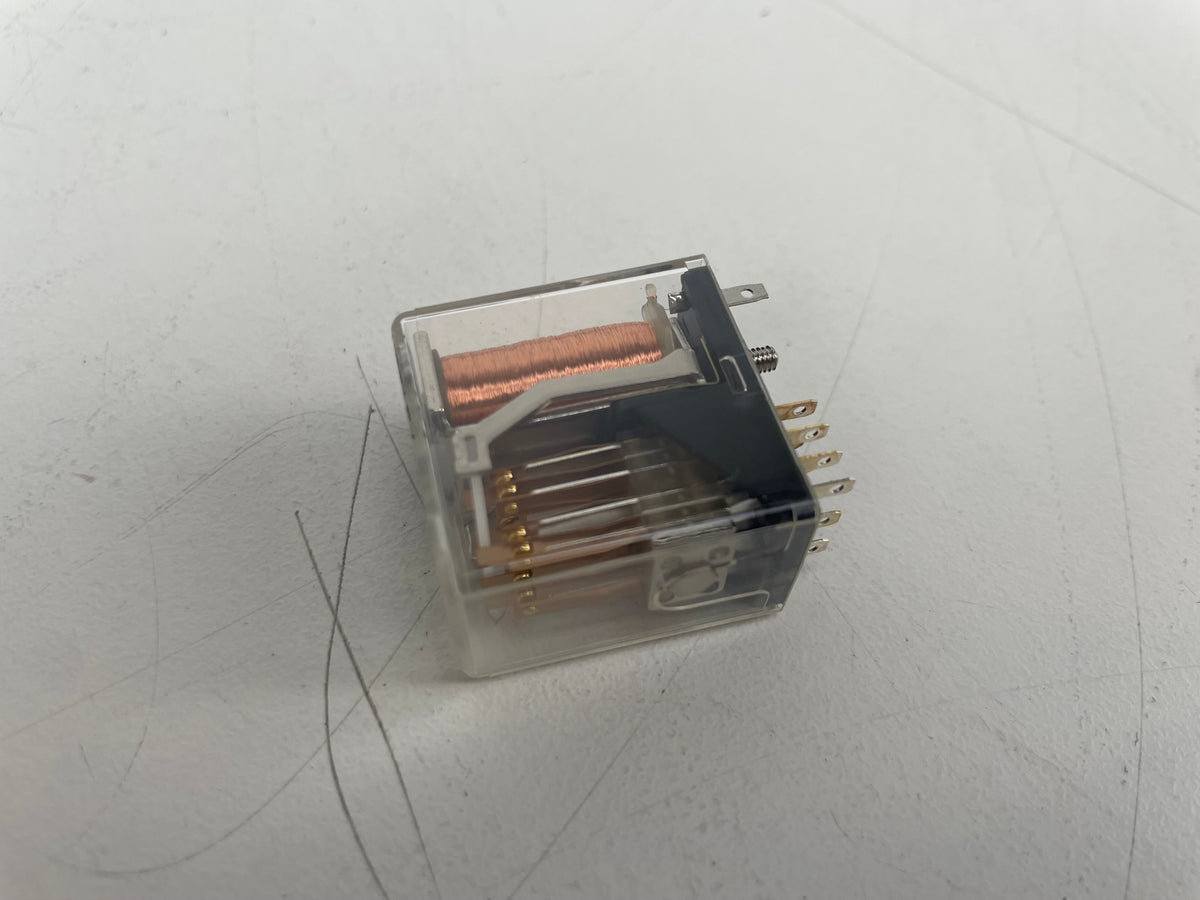

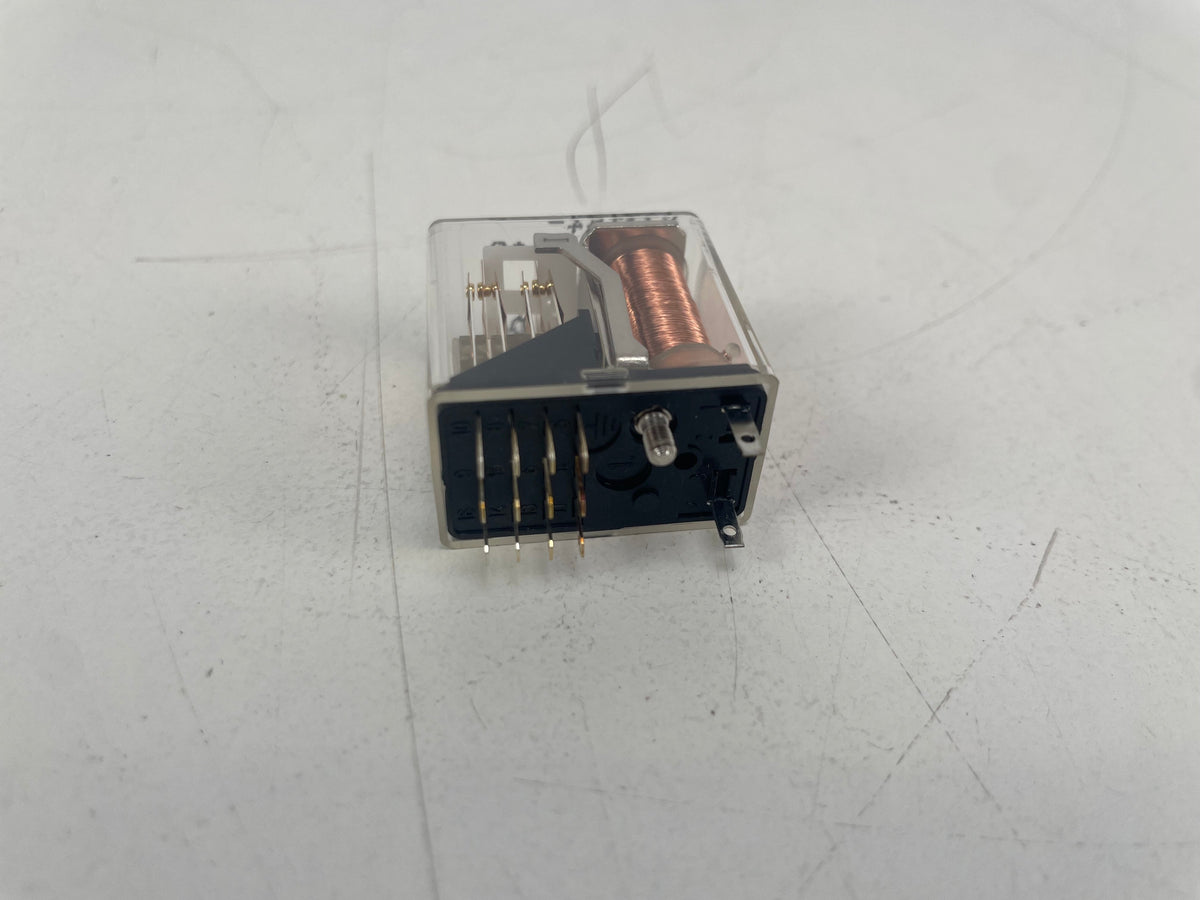

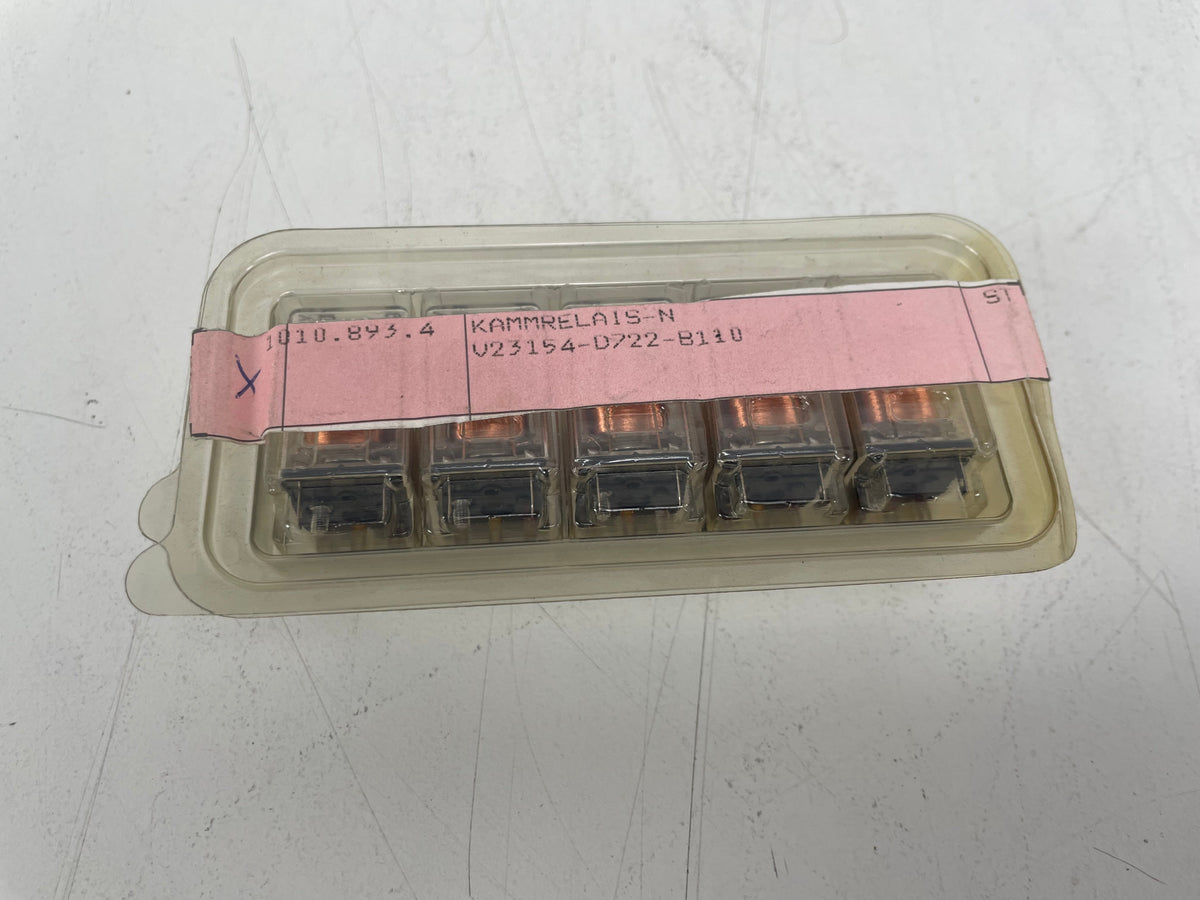

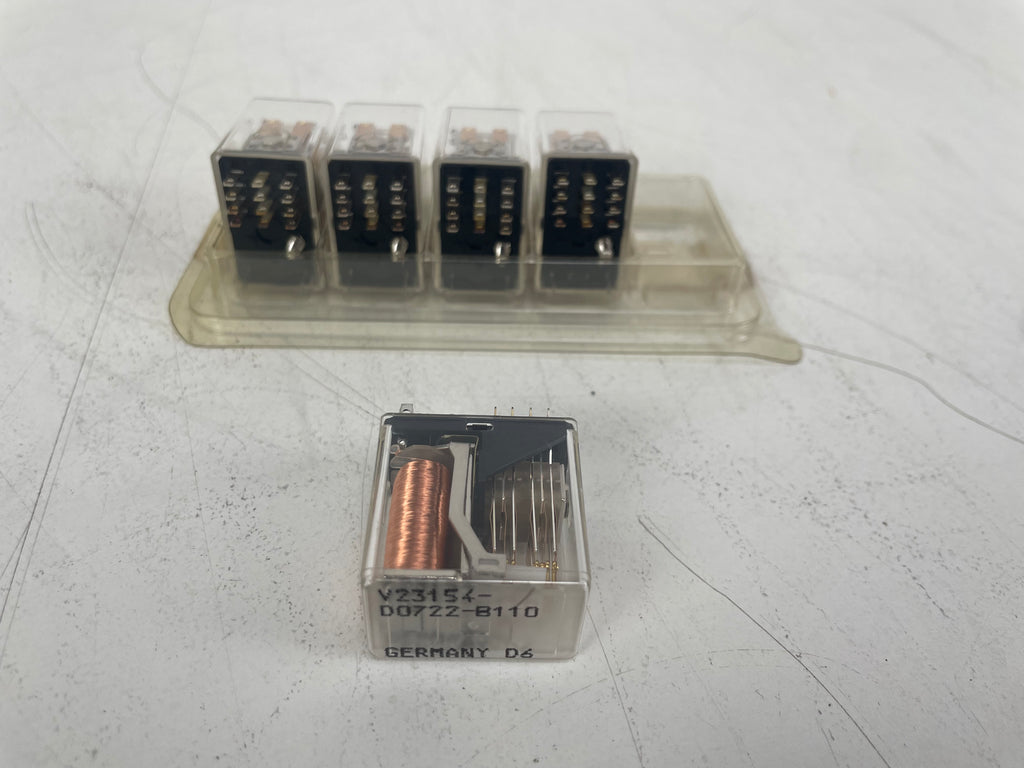

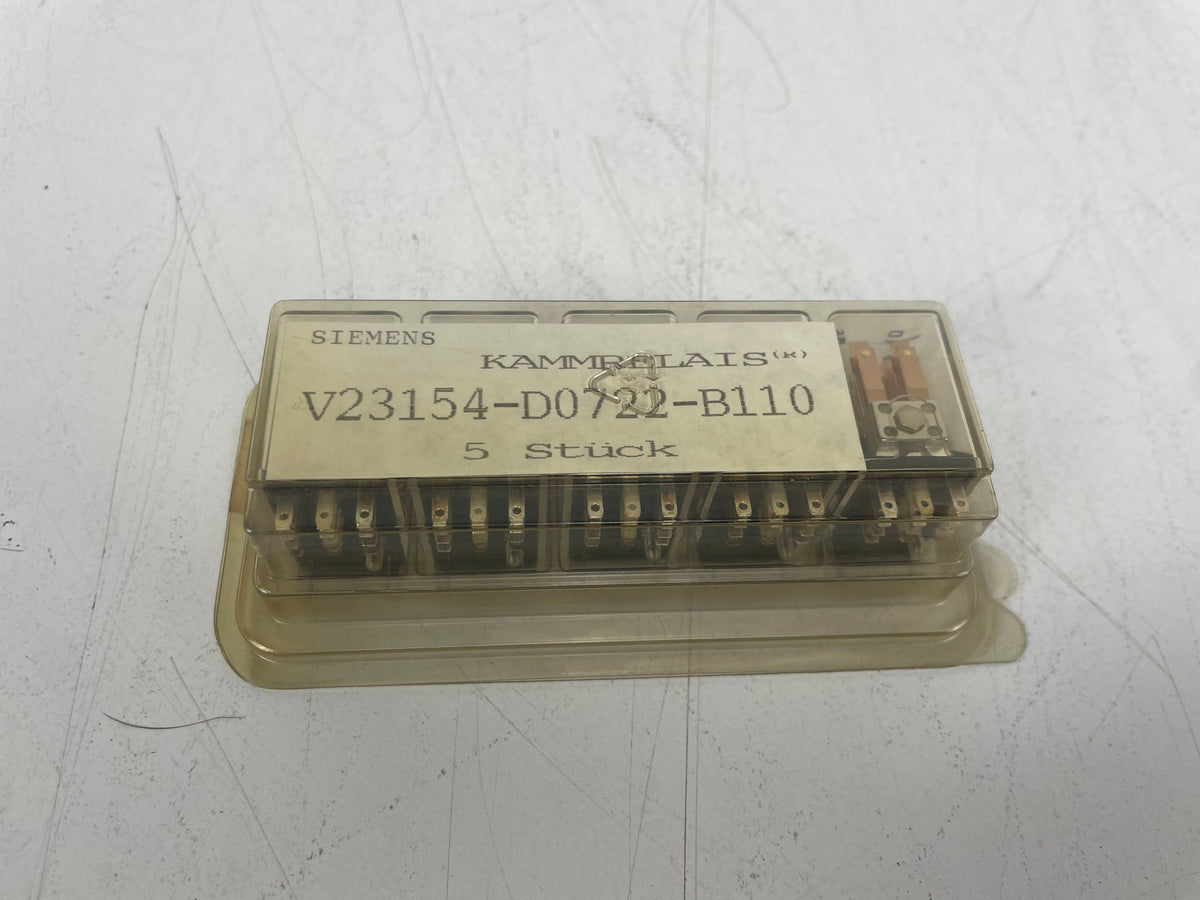

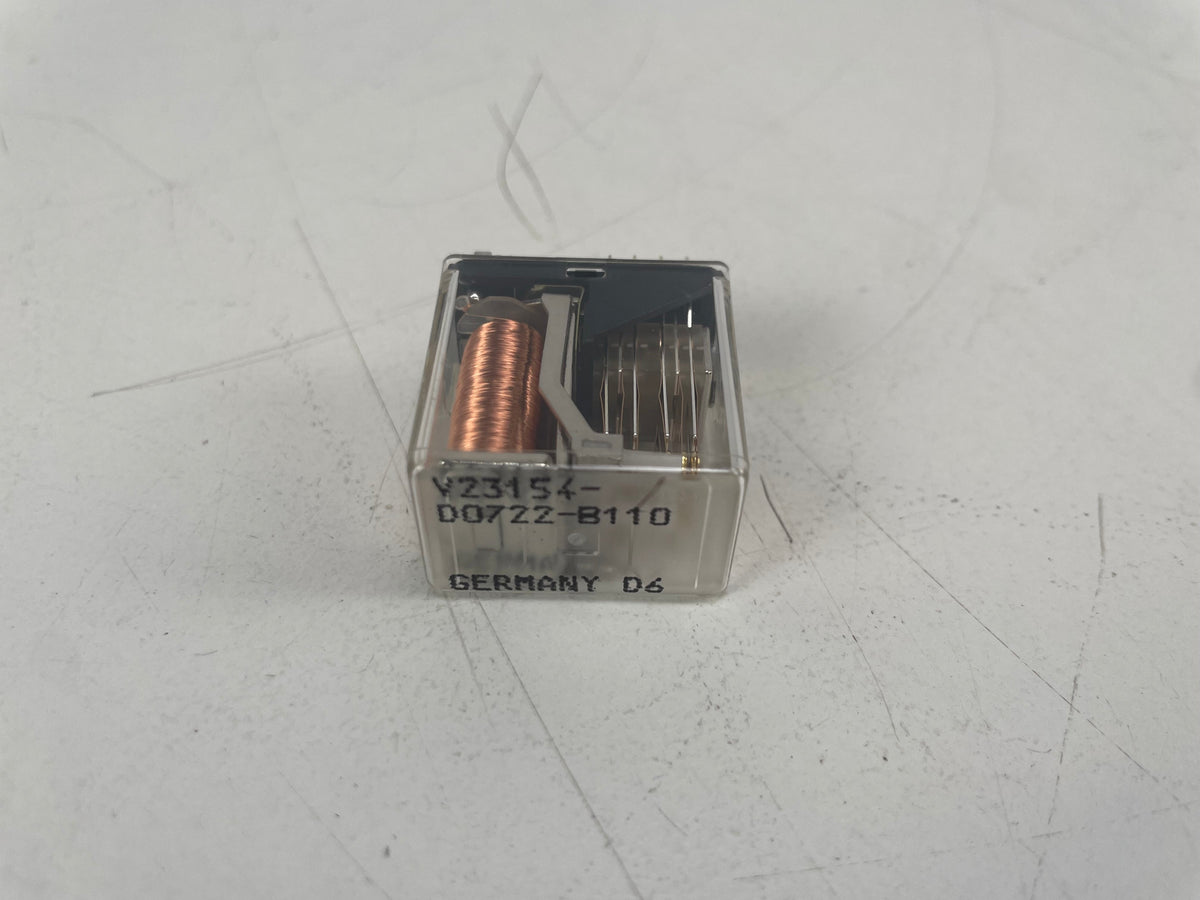

For sale: a lot of 5x Siemens V23154-D0722-B110 relays, offered in NOS (New Old Stock) condition.
Cosmetic condition:
The relays are in NOS (New Old Stock) condition.
- Unused original components
- Stored inventory from older stock
- May show minimal signs of long-term storage
- Functional status
- Unused
- Original Siemens components
- Ready for installation or collection
Specs:
-
Product Type: Cradle Relay N, Size II.
-
Case Style: Dust-protected (Covered, not hermetically sealed).
-
Contact Arrangement: 4 Form C (4PDT - 4 Pole Double Throw).
-
Contact Material: Silver with Gold Flash.
-
Contact Type: Single Contacts.
-
Coil Voltage: Typically in the 24V-32V range for the
D072x series (Specific 24V-32Vdc common for this series range).
-
Maximum Switching Power: 50VA / 35-70W.
-
Maximum Switching Current: 2 A.
-
Maximum Switching Voltage: 125 Vac / 150 Vdc.
-
Terminals: Plug-in/solder terminals.
-
Operating Time: ~7.5 ms (typical).
-
Release Time: ~3 ms (typical).
- Ambient Temperature: -40 to +70°C.
Dimensions (LxWxH): 11x5x4cm
Weight: 1 Kg
